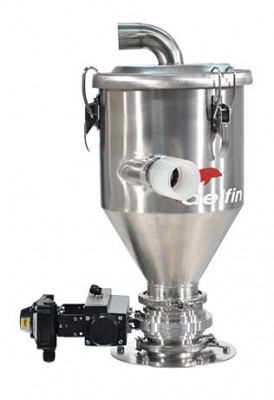

Electro-pneumatic conveyor for transporting powders and grains over large distances.
A Dilute phase pneumatic conveyor, equipped with electric side channel blower and three-phase motor (with or without inverter) from 2.2 to 4.3 kW. Conveyor for powders > 1μm and grains with poor flow, when they need to remain intact. Because the pneumatic conveyor is modular in design, it is possible to increase transport power at a later date, without having to replace the entire unit.
Fully automatic functional logic, a system designed for both continuous operation and potential-free contact.
AISI 304 stainless steel for parts in contact with the product, glossy finish interior and satin finish exterior. Various build and product discharge options available. Wide range of accessories specific to powder transport applications.
Fully automatic functional logic, a system designed for both continuous operation and potential-free contact.
AISI 304 stainless steel for parts in contact with the product, glossy finish interior and satin finish exterior. Various build and product discharge options available. Wide range of accessories specific to powder transport applications.
Applications
Main Features
- Customisation and configuration available according to specific needs
- Easy to install, turn on, use and sanitise
- No obstruction or environmental pollution
- CE-certified, FDA-certified system for food application. A wide range of optional accessories is available
- Increased productivity
- Low economic impact and reduced operating and maintenance costs
- Product quality and integrity preservation
- Improved hygiene and operational conditions

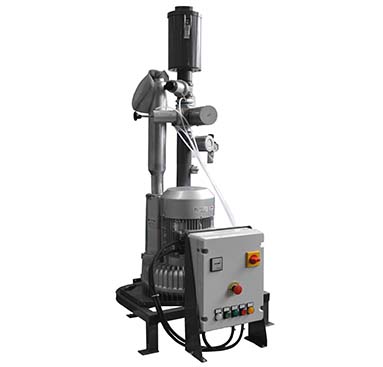

- The system includes a side channel blower, which is a silent, powerful three-phase motor which requires no maintenance
TECH 280E - Specifications
| MODEL | TECH 280E - 2.2 kW | TECH 280E - 4.3 kW |
|---|---|---|
| Power (V - Hz) | 400 - 50 3~ | 400 - 50 3~ |
| Power (kw) | 2.2 | 4.3 |
| Max Airflow (m3/h) | 318 | 320 |
| Max Waterlift (mmH20) | 210 | 360 |
| Material - Efficiency )IEC 60335-2-69) | Polyester - ANT M | Polyester - ANT M |
| Air Cleaning Consumption (NI/min) | 350 | 350 |
| Unload/Outlet (mm) | 100 | 100 |

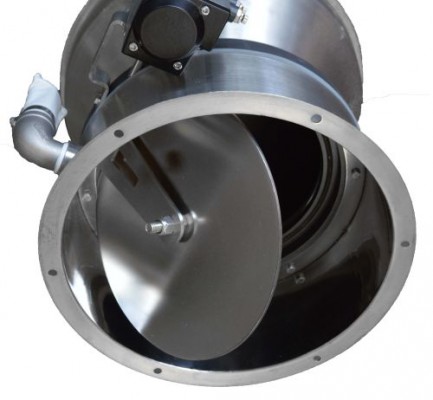

| Type Of Unloading | Clapet Valve | Clapet Valve |
| Weight (kg) | 22 | 22 |
| Max Load Volume (Litres) | 8 | 8 |
| Pneumatic Conveying System (mm) | 50 | 50 |
| Dimensions (cm) | D280 x H770 | D280 x H770 |
| Transport capacity (kg/h) | 770 - 360 - 240 | 1020 - 490 - 340 |
| Distance (metres) | 5 - 10 - 15 | 5 - 10 - 15 |
