ATEX CERTIFIED COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 22 ZONE
The double ATEX certification for internal 20 zone and external 22 zone makes it perfect for continuous and heavy applications in medium explosion risk areas.
Power is generated by two powerful, maintenance-free venturs, 19 or 25 nozzles with an exceptional ratio of air consumption to performance.
Power is generated by two powerful, maintenance-free venturs, 19 or 25 nozzles with an exceptional ratio of air consumption to performance.
Applications
Main Features
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Compact and mobile
- Easy filter replacement
- Compressed air supply through a single Venturi suction unit
- Earth grounding
- Stainless steel filter chamber and container
- Powerful suction thanks to a multi-nozzle venturi unit

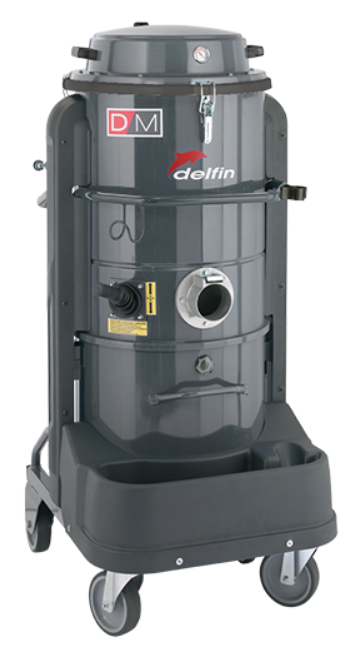

DM AIREX 1/3D - Specifications
| Index | Unit | DM AIREX 25V 1/3D |
|---|---|---|
| Atex zones | ATEX Z20/21 Z1-2 | |
| Air supply | nlt / min | 2.500 |
| Air supply pressure | bar | 6 |
| Ø Air supply hose | mm | 12 |
| Max water lift | mmH₂O | 5000 |
| Max air flow | m³/h | 590 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Marking | II 1/3D Ex h IIIC T80°C Da/Dc | |
| Filter Type | Star | |
| Surface - Diameter | cm²-mm | 30.000-500 |
| Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm |
| Cleaning System | Manual | |
| Transport capacity | kg/h | 100 |
| Dimensions | cm | 62x62x160h |
| Weight | kg | 80 |
