COMPRESSED AIR INDUSTRIAL VACUUM CLEANER WITH ATEX CERTIFICATION
ATEX-certified for the safe vacuuming of dust and solids in medium-risk of explosion areas.
The high filtration efficiency of the vacuumed material is guaranteed by the double filtration level that, in addition to prevent explosion risks, avoid the spill of the vacuumed material into the surrounding working environment.
Power is generated by a powerful 7 or 14-nozzle, maintenance-free venturi unit with an exceptional ratio between air consumption and performance.
The high filtration efficiency of the vacuumed material is guaranteed by the double filtration level that, in addition to prevent explosion risks, avoid the spill of the vacuumed material into the surrounding working environment.
Power is generated by a powerful 7 or 14-nozzle, maintenance-free venturi unit with an exceptional ratio between air consumption and performance.
Applications
Main Features
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Compact and mobile
- High filtration efficiency
- ATEX certified for Zone 20 inside the chamber and for Zone 21 outside the chamber
- Compressed air supply through a single Venturi suction unit
- Large surface antistatic filter
- Low noise level
- Easy to handle

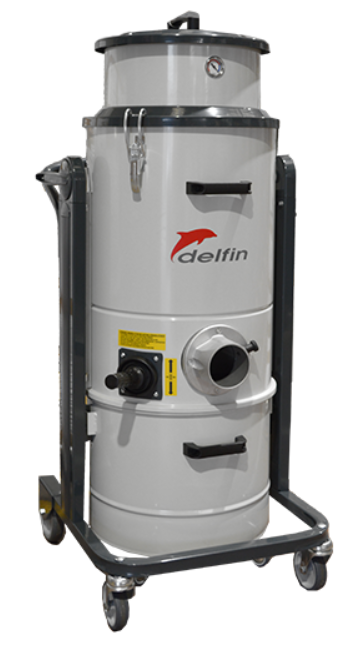

452 AIREX 1/3D - Specifications
| Index | Unit | 452 AIREX 14V 1/3D |
|---|---|---|
| Atex zones | ATEX Z20/21 Z1-2 | |
| Air supply | nlt / min | 1458 |
| Air supply pressure | bar | 6 |
| Ø Air supply hose | mm | 12 |
| Max water lift | mmH₂O | 3700 |
| Max air flow | m³/h | 300 |
| Noise level (EN ISO 3744) | dB(A) | 68 |
| Marking | II 1/3D Ex h IIIC T80°C Da/Dc | |
| Filter Type | Star | |
| Surface - Diameter | cm²-mm | 20.000 - 420 |
| Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm |
| Cleaning system | Manual | |
| Transport capacity | kg/h | 45 |
| Dimensions | cm | 58x63x119h |
| Weight | kg | 49 |
