Industrial Vacuum For Oil & Chips Recovery

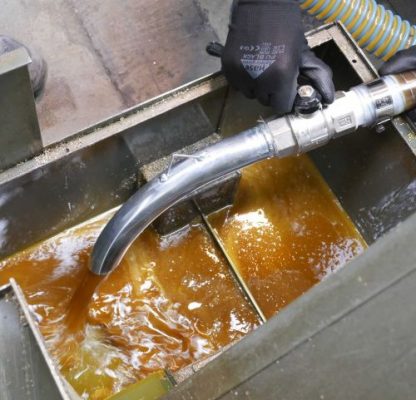

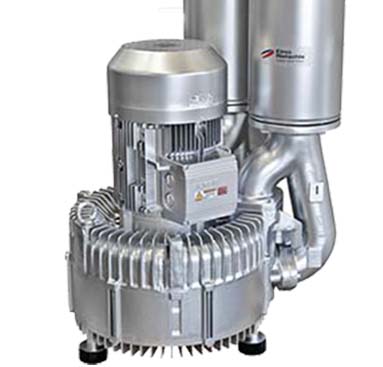

The TC220 IF vacuum cleaner is equipped with a powerful side channel blower with flow inversion that allows fast discharge of liquids. It is designed to suction and filter large quantities of liquids such as cutting oil and coolant mixed with metal chips. It is the ideal vacuum for medium to large CNC machine tool maintenance. Also, it can easily withstand continuous duty, without maintenance need. This means significant savings in terms of money and time spent servicing machinery.
FILTRATION SYSTEM
Filtration system with mechanical protection against oil-mists placed between the motor and collection container:
• First stage: 3D Superweb Filter in PPL with internal fabric (20 micron efficiency)
• Second stage (optional): a polyester water-oil repellent cartridge filter (OWR-Oil Water Repellent) with PTFE external membrane from 2,7m2 filter area (class H13)
OPTIONS
• Independent discharge pump for liquids + electric level sensor

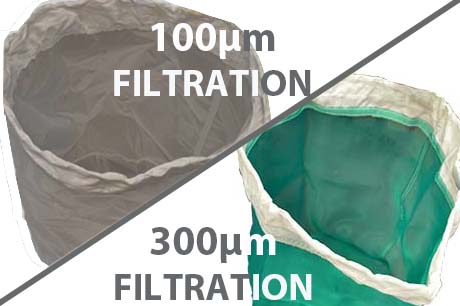

• Pre-filtration with PPL filters, 300 or 100 microns efficiency
• Microfiltration of the oils, 90 or 10 microns
FILTRATION SYSTEM
Filtration system with mechanical protection against oil-mists placed between the motor and collection container:
• First stage: 3D Superweb Filter in PPL with internal fabric (20 micron efficiency)
• Second stage (optional): a polyester water-oil repellent cartridge filter (OWR-Oil Water Repellent) with PTFE external membrane from 2,7m2 filter area (class H13)
OPTIONS
• Independent discharge pump for liquids + electric level sensor
• Pre-filtration with PPL filters, 300 or 100 microns efficiency
• Microfiltration of the oils, 90 or 10 microns
Applications
Main Features
- Reduced downtime of machine tools
- Grid for vacuuming chips
- Reduction of disposal costs due to exhausted oils
- Reduction of machine cleaning times
- A turnable suction inlet simplifies vacuuming operations
- A window allows inspection and access to the collection tank
- PPL filter for chips separation
- Floating device to stop the suction when the container is full

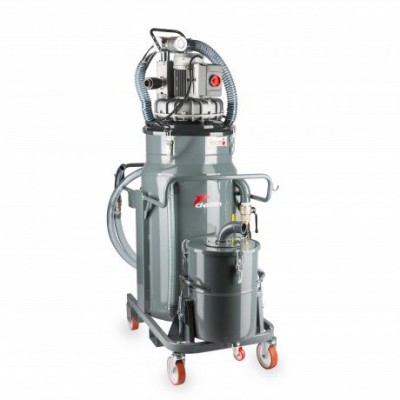

TC 220 IF - Specifications
| MODELS | TECNOIL 200IF T |
|---|---|
| Power (Voltage - Hz) | 400 - 50 |
| Power (kW) | 3 |
| Max Waterlift (mmH20) | 2700/3000 |
| Airflow max. (m3/h) | 318 |
| Noise level (EN ISO 3744) - dB(A) | 78 |
| Filter Type | 3D SuperWeb + PPL |
| Media - Filtration | Polypropylene - 20μm |
| Discharge System | Reverse Flow |
| Liquids Capacity (Litres) | 220 |
| Solids Capacity (Litres) | 40 |
| Discharge Speed (Litres/Minute) | 200 |
| Floating Device | Yes |
| Dimensions (cm) | 110 x 63 x 181H |
| Weight (kg) | 185 |
