Industrial Vacuum For Oil & Chips Recovery
The TC100 IF vacuum cleaner is a powerful three-phase vacuum equipped with a side channel blower, designed specifically for the mechanical industry and maintenance of CNC machine tools.

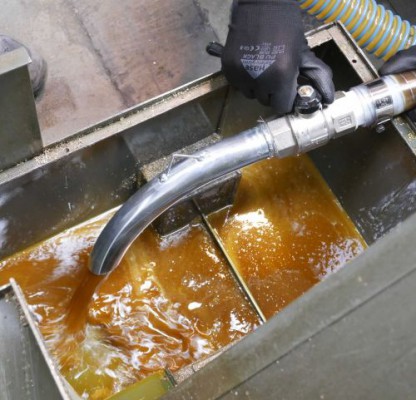

Coolant liquids and emulsions can be suctioned continuously, even 24 hours a day, separating off any metal chips and allowing the vacuumed liquid to be reused. This can equate to significant savings in terms of money and time spent servicing machinery.
100 litre liquid capacity, 40 litre sieve grid basket for metal chips and rapid discharge of liquid via reversed airflow.
Coolant liquids and emulsions can be suctioned continuously, even 24 hours a day, separating off any metal chips and allowing the vacuumed liquid to be reused. This can equate to significant savings in terms of money and time spent servicing machinery.
100 litre liquid capacity, 40 litre sieve grid basket for metal chips and rapid discharge of liquid via reversed airflow.
Applications
Main Features
- One single machine to vacuum, separate and recover or dispose the cutting oil mixed with metal chips

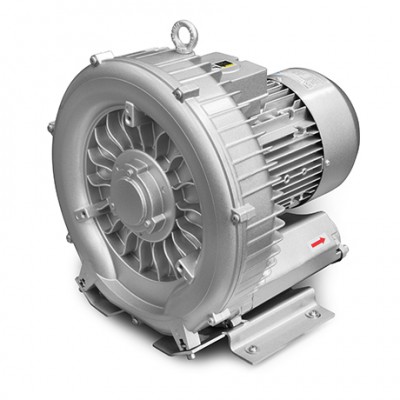

- Three phase side channel blower, suitable for continuous duty
- Compact and manoeuvrable, perfect for use in narrow spaces
- 100% steel construction
- Liquids level control thanks to the floating to stop the suction, and visual level detector
- Detachable container with integrated sieve basket, for separation of metal chips
- Fast discharge system of the collected liquids (reversed airflow system, 150 lt/ min)
- Tangential suction inlet and cyclone for filter and motor protection

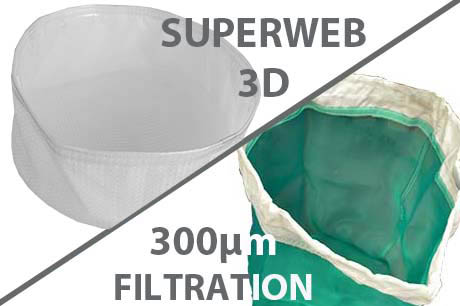

- Oil mist and nebulized particles separation system, thanks to the Superweb 3D double layer polypropylene filter
- Specific oil proof wheels and gaskets
TC 100 IF - Specifications
| MODELS | TECNOIL 100IF |
|---|---|
| Power (V - Hz) | 400 - 50 |
| Power (Kw) | 3 |
| Max Waterlift (mmH20) | 3000 |
| Airflow max. (m3/h) | 318 |
| Sound level - dB(A) | 78 |
| Filter Type | 3D Superweb |
| Surface - Diameter (cm2-mm) | 500 |
| Media - Filtration | Polypropylene - 300µm |
| Discharge System | Reverse Flow |
| Liquids capacity (Litres) | 100 |
| Solids capacity (Litres) | 40 |
| Discharge Speed (L/min) | 200 |
| Floating device | Yes |
| Dimensions (cm) | 67 x 66 x 135H |
| Weight (kgs) | 95 |
