Three Phase Wet & Dry Vacuums -

Industrial Three-Phase Vacuum

Three Phase - DIRECT X - AS FIXE Vacuum

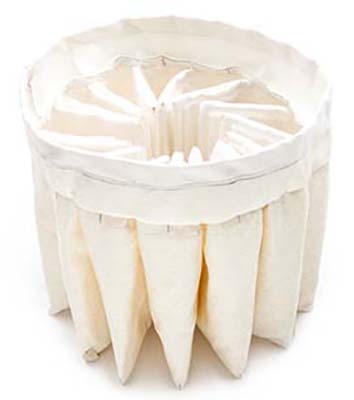

The AS FIXE industrial vacuum was created to respond to the need of large manufacturing companies to arm themselves with a powerful suction tool that could be installed near machines in operation on a permanent basis. The collection unit, which can be wall-mounted or fixed to a floor frame, has a weighted flap discharge system so that the collected material can be transported to a chosen point. Other types of automatic discharge are available for seamless integration into production lines. Powerful, maintenance-free, three-phase blower, large polyester filter with filter shaker for manual cleaning and built-in safety valve to protect the motor.


  • Applications within the Food Industry
  • Chemical / Pharmaceutical Industry Applications
  • Applications in the Plastics Industry
  • Coffee, Tea, Tobacco Processing
  • Cement Plant Applications

Main Features

  • Side channel blower motor, powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Full customisation for specific needs
  • Long lasting
  • Balances flap discharge system
  • Remote control switch
  • Pressure relief valve for motor protection

AS FIXE - Specifications

Voltage (V - Hz) 400 - 50
Power (kW) 3
Max Waterlift (mmH2O) 3200
Max Airflow (m3/h) 318
Suction Inlet (mm) 80
Noise Level (EN ISO 3744) - dB(A) 75
Filter Type Star
Surface - Diameter (cm2 - mm) 30,000 - 500
Material - Efficiency (IEC 60335-2-69) Polyester - L
Cleaning System Manual
Dimensions (cm) 58 x 55 x 175H
Weight (kg) 60
