Three Phase Wet & Dry Vacuums -
4534

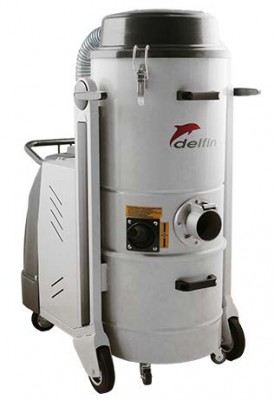

The Mistral 4534 is one of the most compact and powerful three-phase industrial vacuum cleaners in the world.

Delfin three phase Mistral 4534 vacuum
Compact and quiet, it has been developed from years of experience in the food, pharmaceutical and chemical industries, where it is often installed as a fixed unit on production machinery. A high performance side channel blower guarantees constant and continuous suction also when used in continuous applications. Its characteristics and compact dimensions make it the most frequently used vacuum cleaner for pharmaceutical industry cleaning.

Applications

  • Applications in the Plastics Industry
  • Applications involving Electronics
  • Optics applications - the production of contact lenses or optical lenses
  • Coffee, Tea, Tobacco Processing

Main Features

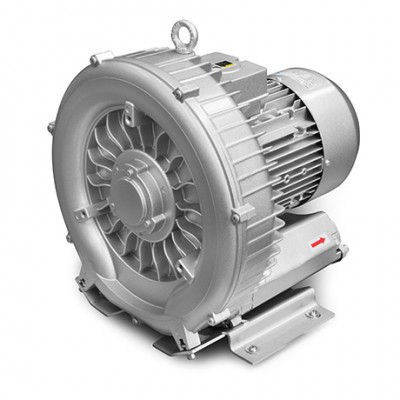

  • Side channel blower motor, powerful and silent, totally maintenance free, sutiable for continuous duty
  • Extractable collection container with optional use of disposable bags
  • Low noise level
  • Reduced downtime of machine tools
  • High filtration effiiency
  • Accessory kit as standard
  • Pressure relief valve for motor protection

4534 - Specifications

MODELS 4534
Power (V - Hz) 400 - 50
Power (kW) 3
Electrical Protection (IP) 55
Max Waterlift (mmH2O) 3200/2700
Max Airflow (m3/h) 350
Suction Inlet (mm) 80
Noise Level (EN ISO 3744) - dB(A) 69

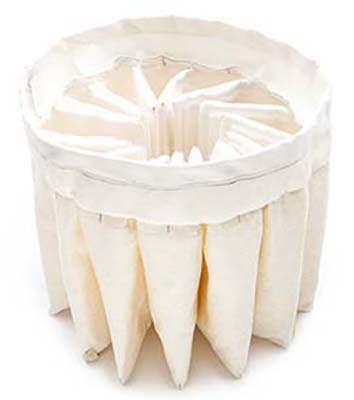

Filter Type Star
Surface Diameter (cm2-mm) 20,000 - 420
Material - Efficiency (IEC 60335-2-69) Polyester - ANT M
Airload on filter (m3/m2/h) 159
Cleaning System Manual
Discharge System Roll-out container
Capacity (Litres) 45
Dimensions (cm) 100 x 55 x 125h
Weight (kg) 85
