ATEX-CERTIFIED INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 22 ZONE
The MTL 201 model with ATEX double certification for internal zone 20 and external zone 22 has been specifically designed to ensure the safe vacuuming of combustible dust in working environments at medium explosion risk.
In particular, the ATEX certification for internal zone 20 ensures the prevention of the high risk of explosion due to the accumulation inside the vacuum cleaner of the vacuumed combustible material.
The single-phase bypass motor that makes it suitable for non-continuous applications and for less than 3 hours a day, is protected by the Ex tb certified safety enclosure.
In particular, the ATEX certification for internal zone 20 ensures the prevention of the high risk of explosion due to the accumulation inside the vacuum cleaner of the vacuumed combustible material.
The single-phase bypass motor that makes it suitable for non-continuous applications and for less than 3 hours a day, is protected by the Ex tb certified safety enclosure.
Applications
Main Features
- Largest surface filter in its category
- Tangential suction inlet with integrated separation cyclone
- Complete steel construction
- Compact and mobile
- Easy filter replacement
- Stainless steel AISI304 collection tank
- Dustop filter cleaning system

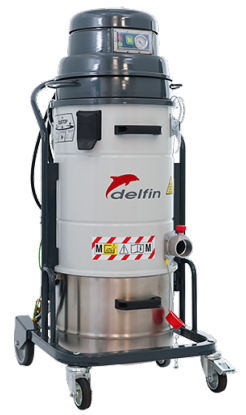

MTL 201 1/3D - Specifications
| Index | Unit | MTL 201 Z22 |
|---|---|---|
| ATEX Zones | ATEX Z20/21 Z1-2 | |
| Voltage | V - Hz | 230 - 50/60 1~ |
| Power | kW | 1,15 |
| Max water lift | mmH₂O | 2500 |
| Max air flow | m³/h | 180 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Marking | II 1/3D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Dc | |
| Filter Type | Cartridge | |
| Surface - Diameter | cm²-mm | 30.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Cleaning System | Dustop | |
| Transport capacity | kg/h | 20 |
| Dimensions | cm | 57x48x115h |
| Weight | kg | 32 |
