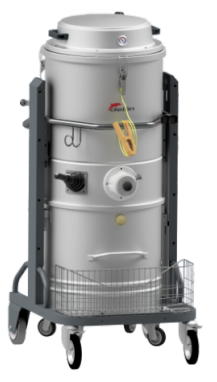

COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 21 ZONE
The double ATEX certification, the antistatic filters and the standard absolute filter make it the ideal vacuum cleaner to efficiently and safely remove dust, solids and gases, such as hydrogen and acetylene, in areas at high risk of explosion.
Power is generated by two powerful, maintenance-free, 19 or 25-nozzle venturi units with an exceptional air consumption-performance ratio, perfect for continuous and heavy-duty applications.
Power is generated by two powerful, maintenance-free, 19 or 25-nozzle venturi units with an exceptional air consumption-performance ratio, perfect for continuous and heavy-duty applications.
Applications
Main Features
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Compact and mobile
- Easy filter replacement
- Earth grounding
- Powerful suction thanks to a multi-nozzle venturi unit
DM AIREX 1/2D - Specifications
| Index | Unit | DM AIREX 25V 1/2D |
|---|---|---|
| Atex zones | ATEX Z20/21 Z1-2 | |
| Air supply | nlt / min | 2.500 |
| Air supply pressure | bar | 6 |
| Ø Air supply hose | mm | 12 |
| Max water lift | mmH₂O | 5000 |
| Max air flow | m³/h | 590 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Marking | II 1/2D Ex h IIIC T85° Da/Db - II 2/2G Ex h IIB T6 Gb/Gb | |
| Filter Type | Star | |
| Surface - Diameter | cm²-mm | 30.000-500 |
| Material - Efficiency | IEC 60335-2-69 | Ant Polyester - M PTFE |
| Cleaning System | Manual | |
| Transport capacity | kg/h | 100 |
| Dimensions | cm | 62x62x160h |
| Weight | kg | 80 |
