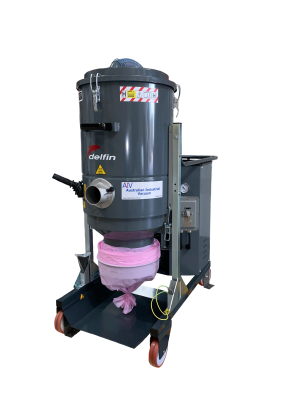

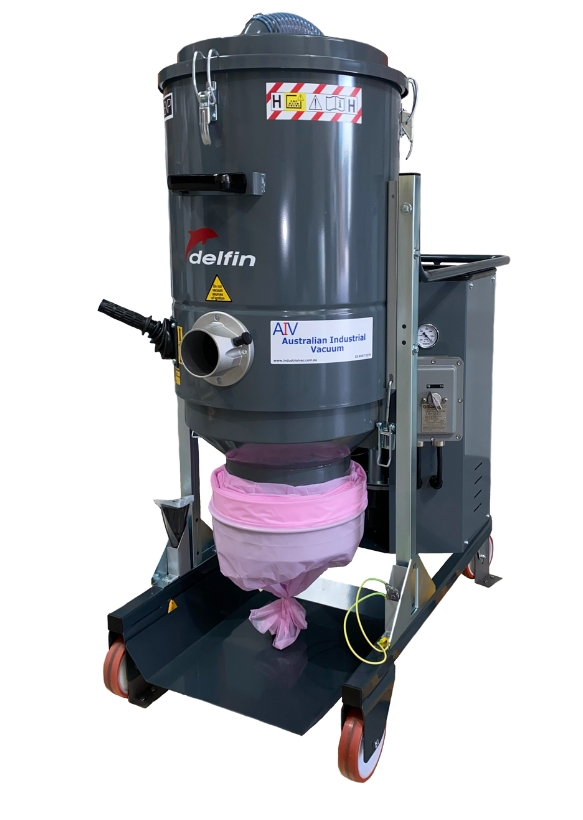

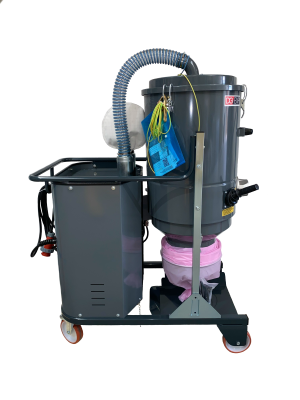

IECEX Certified Industrial Three-Phase Vacuum
This model has been specially developed by Delfin to meet the Australian Standard IECEx certification. It is ideal for vacuuming solids, dusts,
and liquids in explosion hazard zones. Thanks to its powerful side channel blower, integrated manual filter shaker, detachable container and
large polyester filter, the DG50 IECEx endless bagging option easily stands out as the best three phase machine for IECEx certified areas.
This unit is available with optional stainless steel tub.
and liquids in explosion hazard zones. Thanks to its powerful side channel blower, integrated manual filter shaker, detachable container and
large polyester filter, the DG50 IECEx endless bagging option easily stands out as the best three phase machine for IECEx certified areas.
This unit is available with optional stainless steel tub.
Applications
Main Features
- IECEx certified
- Low noise level
- Pressure relief valve for motor protection

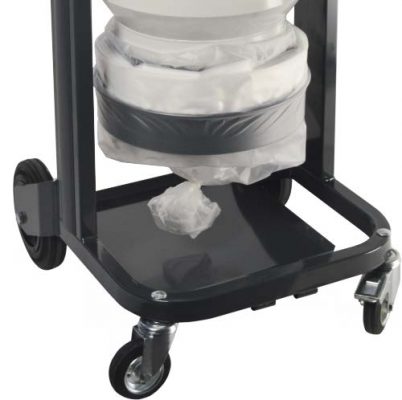

- Disposable bags for safe disposal of hazardous dusts

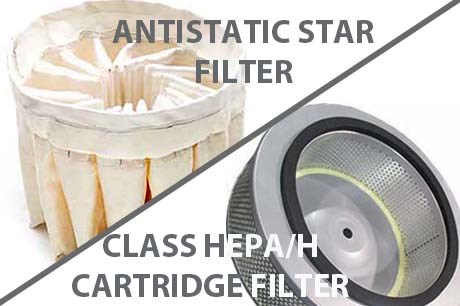

- Large surface antistatic filter
- Conceived for fine and hazardous dust suction
- Additional HEPA filter included
- Side channel blower motor, powerful, silent &
totally maintenance free
DG 50 ENDLESS BAG IECEX - Specifications
| Models | DG50 IECEX ENDLESS BAG |
|---|---|
| Power (V - Hz) | 400 -50 |
| Power (kW) | 4 |
| Max Water Lift (mmH20) | 2300 |
| Max Air Flow (m3/h) | 420 |
| Suction Inlet (mm) | 80 |
| Noise Level (EN ISO 3744) - dB(A) | 72 |
| Filter Type | Star |
| Surface Diameter (cm2-mm) | 30,000 - 500 |
| Material - Efficiency (IEC 60335-2-69) | Polyester - Antistatic M |
| Cleaning System | Manual |
| Secondary Filter | HEPA |
| Collection Tank | Endless Bag |
| Capacity (metre) | 20 |
| Dimensions (cm) | 70 x 120 x 150h |
| Weight (kg) | 137 |
