ATEX CERTIFIED COMPRESSED AIR WET & DRY VACUUM CLEANERS FOR INTERNAL 20 ZONE AND EXTERNAL 21 ZONE
Designed and certified by an external part to operate in areas with a high risk of explosion, it is ideal for the vacuuming of liquids, dust and gas.
The structure entirely made of stainless steel AISI304, combined with the equipment of antistatic filters of class M and the HEPA filter as standard allow you to carry out the cleaning and maintenance activities in total safety. Available with 7 or 14 nozzle venturi units.
The structure entirely made of stainless steel AISI304, combined with the equipment of antistatic filters of class M and the HEPA filter as standard allow you to carry out the cleaning and maintenance activities in total safety. Available with 7 or 14 nozzle venturi units.
Applications
Main Features
- Vacuum gauge to detect filter clogging
- Compact and mobile
- Easy filter replacement
- Floating device to stop the suction when container is full
- Discharge hose for liquids
- Stainless steel AISI304 collection tank
- Earth grounding
- Powerful suction thanks to a multi-nozzle venturi unit

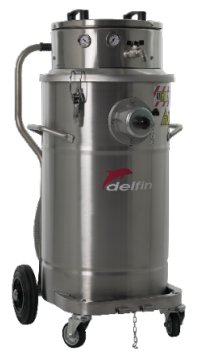

802 WD AIREX 1/2D - Specifications
| Index | Unit | 802 WD AIREX 14V 1/2D |
|---|---|---|
| Atex zones | CE EX 1/2D | |
| Air supply | nlt / min | 1458 |
| Air supply pressure | bar | 6 |
| Ø Air supply hose | mm | 12 |
| Max water lift | mmH₂O | 3700 |
| Max air flow | m³/h | 300 |
| Noise level (EN ISO 3744) | dB(A) | 68 |
| Marking | II 1/2D Ex h IIIC T85° Da/Db - II 2/2G Ex h IIB T6 Gb/Gb | |
| Filter Type | Bag | |
| Surface - Diameter | cm²-mm | 8.000 - 420 |
| Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm |
| Transport capacity | kg/h | 80 |
| Dimensions | cm | 62x53x108h |
| Weight | kg | 36 |
